Clash Detection & Coordination

Identify spatial conflicts and coordination failures before they reach the site. We ensure your building systems work together seamlessly.

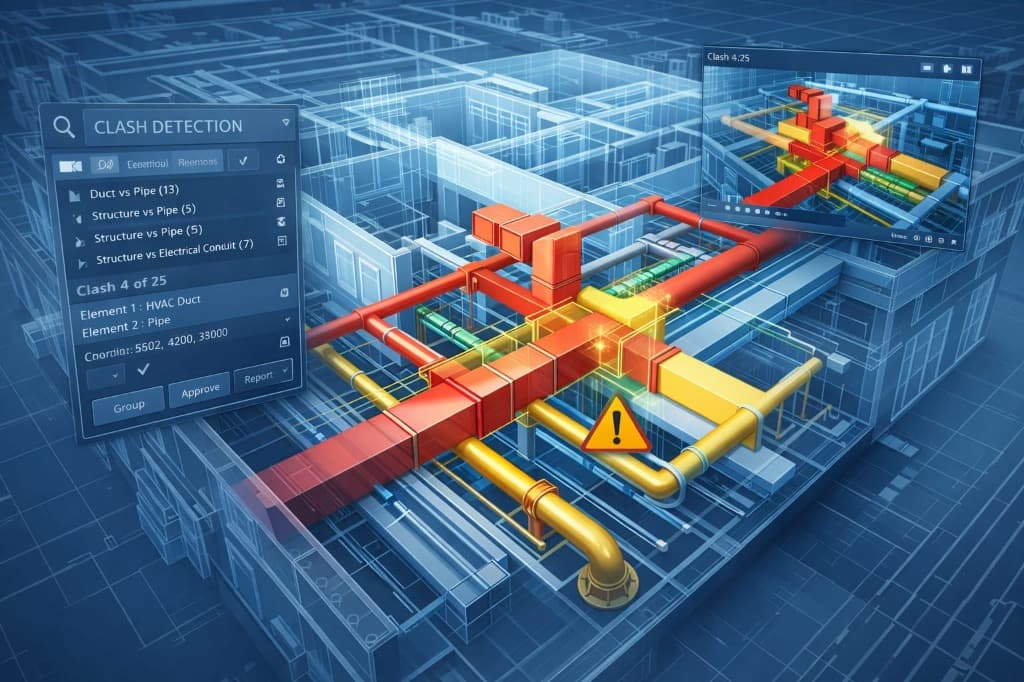

Automated Clash Detection and System Coordination

The Problem

Unresolved spatial conflicts between MEP, structure, and architecture lead to emergency field fixes, schedule overruns, and wasted materials.

Our Solution

We perform systematic, automated clash detection across all disciplines. Our process doesn't just find clashes; it manages their resolution through structured coordination, ensuring a constructible design.

Technical Workflow

1

Model Federation

We aggregate multi-discipline models into a unified coordination environment, ensuring all systems are correctly positioned.

2

Automated Conflict Identification

Using advanced coordination software, we run rule-based tests to identify hard, soft, and workflow clashes.

3

Clash Analysis & Prioritization

We filter results to remove duplicates and ignore non-critical issues, focusing on "real" clashes that impact constructability.

4

Structured Coordination Workshops

We lead coordination meetings to resolve prioritized conflicts, ensuring technical feasible solutions are implemented.

5

Resolution Verification

We verify that agreed-upon changes are correctly updated in the source models and run final "sign-off" coordination checks.

Deliverables

  • Prioritized Clash Matrix
  • Coordination Issue Logs
  • Resolution Status Reports
  • Coordinated Federated Models
  • Constructability Review Documentation
  • Meeting Minutes and Action Items

Standards Followed

  • ISO-19650-2 Coordination Workflows
  • Industry Standard Clash Tolerances
  • Project BIM Execution Plan (BEP)
  • Building System Clearance Requirements
